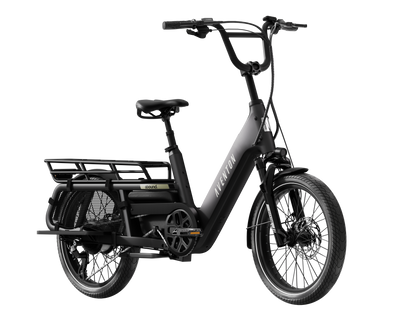

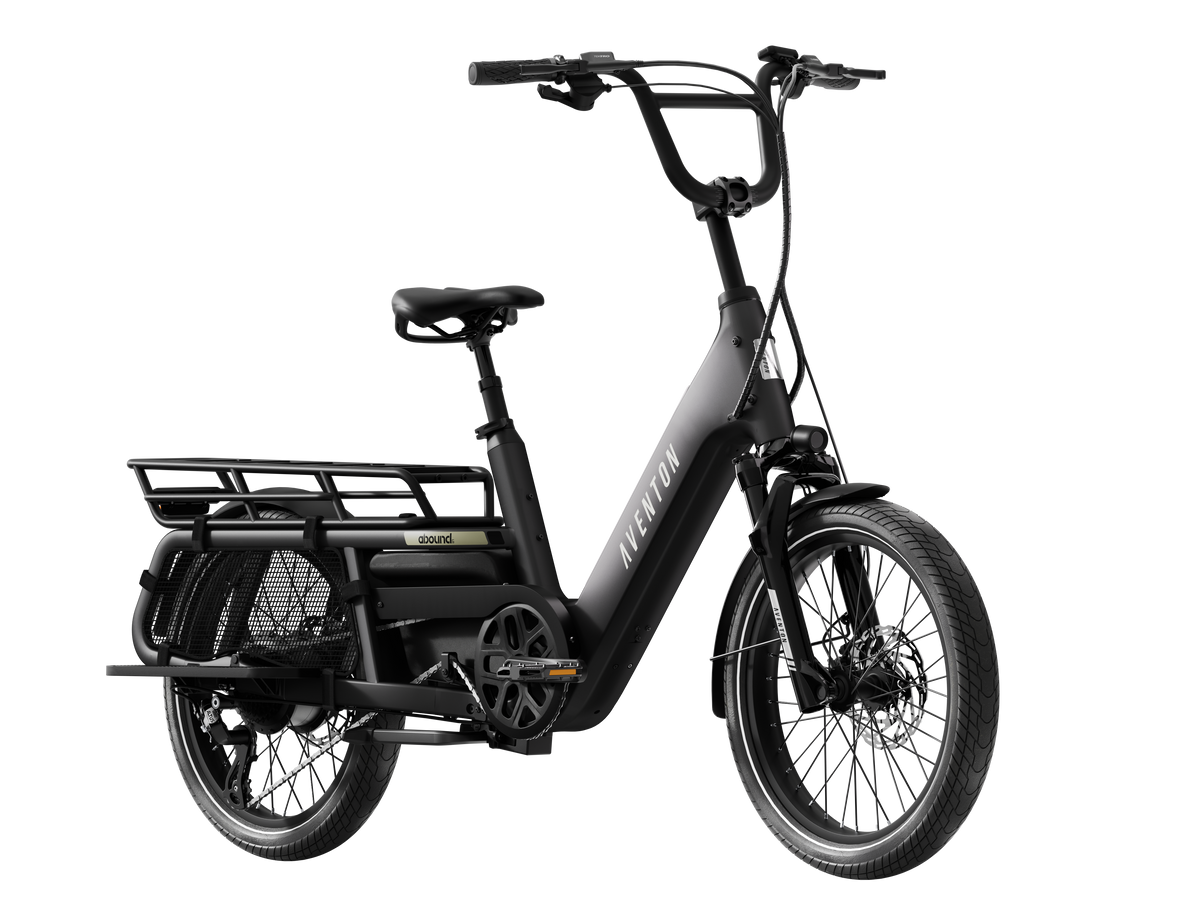

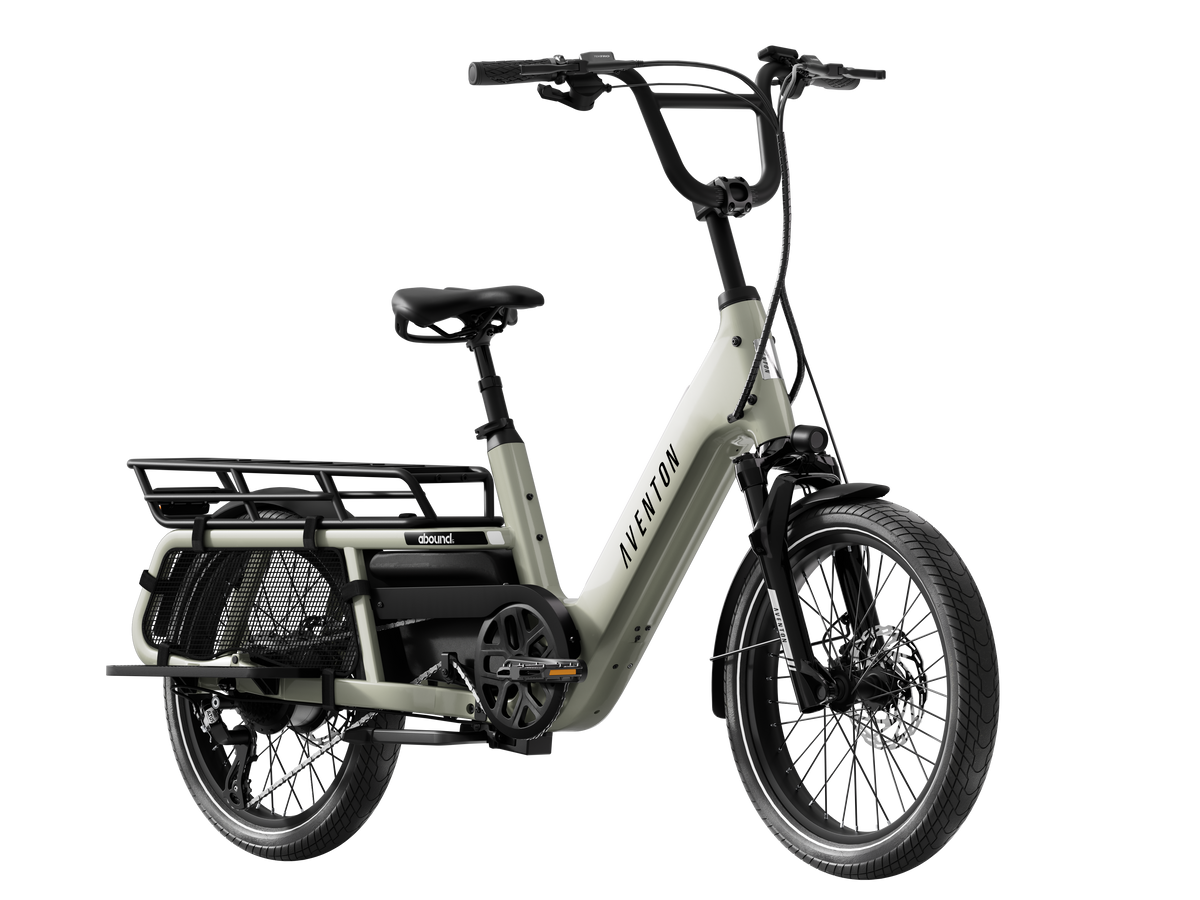

Aventon- Abound LR Ebike

Aventon- Abound LR Ebike

Aventon

$1,999.00 USD
$1,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

Note: An additional $180 fee will be added to cover professional assembly, setup, testing, and adjustment, ensuring your bike is ready for pickup and fully tuned for a smooth ride.

Carry more and go farther with the Aventon Abound LR, a versatile electric cargo bike built to handle everything from family adventures to serious hauling.

Powered by a 750W motor and featuring an extended rear rack with an impressive 440 lb. total payload capacity, the Abound LR is ready for kids, groceries, beach gear, work supplies, and just about anything else you need to bring along.

Comfort is built into every ride. The gravity-cast frame, adjustable quill stem, front suspension, and suspension seatpost provide a smooth, confident ride—even when you're fully loaded.

The Abound LR also features Aventon Control Unit (ACU) technology, giving you added connectivity, security, and the ability to locate and control your bike remotely.

Load it up, bring everyone along, and enjoy the ride—the Aventon Abound LR is built to carry more.

View full details

Specifications

Weight 88lbs

Total Weight Limit 440 lbs

Rider Height 4'11" - 6'3"

Ebike Class Class 2

Ebike Range Up to 60 miles

Battery Safety Certifications Certified to UL 2271

Safety Certifications UL and TUV Safety Certified
UL 2849

Ideal Use Cargo & Utility

Pedal Assist 3 Levels (with Ride Tune Customization)

Frame Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery

Fork Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions

Rear Spacing 175mmFork Spacing 110mm

Front Wheel Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle

Rear Wheel Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor

Tires 20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls

Motor Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)

Motor Torque 80Nm

Display Aventon BC147

Battery Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

Battery Weight 8.7lbs

Sensors Double Sided Bottom Bracket Torque Sensor

Charger 36V Output: 42V/ 4A

Brakes Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Front Brake Rotor 180mm 6 bolt

Rear Brake Rotor 203mm 6-bolt

Rear Derailleur Shimano Altus RD-M310 8 Speed

Shifter Shimano 8 Speed Trigger SL-M315-8R

Cassette 12-32T / 8 Speed Shimano CS HG200-8

Chainring 52 tooth

Crankset 3 pc, 165mm crank arm

Bottom Bracket Square Taper, Sealed, Dual-Sided Torque Sensor
