· 5 Riding Modes
Five riding modes deliver the speed and power to own the road as a
Class 1, 2, or 3 eBike.* New simplified labels, including Eco, Tour, Sport,
Sport+, & Turbo, allow riders to choose their riding experience.
· Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left-hand side
is easily engaged with your thumb while simultaneously eliminating joint
fatigue.
· Stealth M24 Motor
A 750W rear hub motor (1310W peak) with 85Nm of torque supplies
power and speed quicker than ever before. Stealth M24 technology delivers a
quieter motor experience without sacrificing power.
· Battery
An integrated & removable 48V, 17.5Ah (840Wh) lithium-ion
battery certified to UL 2271 makes for a clean design while powering your ride
for up to 85 miles on a single charge.** The XP4 is also certified to UL 2849.†
Removing the battery from the frame is a breeze with the side-facing key port
location.
· New: Keyless Riding
Turn your bike on and off with the push of a button, and start
riding without having the key in the battery! Keys are needed to remove the
battery from the bike frame only. We’ve listened to our loyal riders, and you
can now ride key-free!
· Rear Rack
A new rear rack design integrated into the bike frame holds up to
150lbs and features bosses for mounting various accessory combinations. Add a
LevelUp Rack (sold separately) on top of the rack to unlock even more accessory
combinations!
· Co-Pilot Capable
The LevelUp Rack (sold
separately) can be added to the integrated rear rack and has a built-in
mounting window to easily install children's seats like the Thule Maxx Yepp Seat.
If they have outgrown a standard child seat, our Buddy Seat (sold
separately) contains an open padded seat, handlebars, and foot pegs that allow
you to bring them along for the ride!***
· TFT LCD Display
A custom color TFT display featuring a detachable mount and a
USB-C port. You’ll find trip, battery, & power intelligence on the go. New
intuitive drop-down menus make navigating the settings on your eBike easy to
understand & allow users to customize their ride settings based on
preference. The IP-X5-rated display ensures greater water resistance.
· Tires—with Slime!
Puncture-resistant 20” x 3” tires are perfect for mixed terrains
and make for a smoother ride. The new custom tread pattern has less rolling resistance
for better power efficiency and delivers an ultra-quiet experience. Slime is
installed to prevent flat tires—at no additional cost.
· Torque Sensor
Our proprietary in-house-designed torque sensor programming will
give you smoother power distribution and a better riding experience. It is
designed to manage power output based on the rider’s pedaling effort. With this
programming experience, riders can reach higher speeds easily and with more
control than ever before.
· Drivetrain
An 11-32 tooth, 8-speed freewheel paired with a Shimano Altus
derailleur and a below-the-bar trigger shifter allows you to swiftly change
gears while riding to create pedaling efficiency and an easier riding
experience at higher speeds.
· Crankset
Forged aluminum, 56-tooth custom chainring is the perfect ratio
for effortless 20-inch wheel pedaling.
· Chain
A KMC Z8 steel chain with inner plate chamfering offers consistent
tension and smooth transitions between shifting for a secure performance
throughout your ride.
· 602 Hydraulic Brakes
Get ultimate stopping power with 602 hydraulic brakes paired with
180mm rotors (2.3mm thick), making it as easy to stop as it is to go, whether
in wet or dry conditions. Paired with ergonomically designed aluminum brake
levers for durability.
· Safety Lights
An integrated safety system, featuring a new bright 90-lumen
headlamp with side amber lights and a brake-activated rear light powered by the
internal battery, allows you to be seen at any time of day.
· Turn Signals
Alert drivers, riders, and people nearby with our turn signals.
Simply use the left or right arrows on the button pad to turn on the blinkers
on either side of the rear light.
· Suspension Fork
The front fork provides shock absorption for a smooth and
comfortable ride. Adjust the tension or lock it out to tailor each ride to your
preference based on payload capacity and weight distribution.
· Folding Kickstand
A heavy-duty steel side-sweeping kickstand located near the
chainstay keeps the eBike upright.
· Fenders
Polypropylene fenders with a flared tail protect you and your ride
from debris. The flexible material is damage-resistant and helps ensure
long-term durability.
· Quick-Release Pedals
Custom-designed 6000 Series Aluminum quick-release pedals with
splined inserts allow for easy, tool-free removal and installation. The new
shape of the pedals improves foot traction for an optimal experience.
· Lock-on Grips
Full-length ergonomic lock-on grips add comfort so you can ride
longer. The plastic sleeve inside helps lock the grips into place and also
allows the grips to be easily removed.
· Saddle
A custom-designed saddle complements a sporty look while adding
comfort so you can ride longer.
· Adjustable Handlebar
Stem
Ride longer and more comfortably in an upright cruising position
with our new zero-degree stem, which shortens the handlebar reach. Plus,
telescoping functionality allows riders to reach a wide range of heights while
maintaining comfort and stability.
· Telescoping Seat Post
Customize the bike to your perfect size by adjusting the seat post
height; simply open the quick-release collar and slide the post to your
preferred height and lock it in place by closing the collar.
· Fully Foldable
A foldable hinge at both the handlebar stem and frame guarantees
your ride will fit into virtually any compact space. Remove the pedals and the
seat post in seconds for easy and lightweight transport.
· Weight
Total bike weight is 62lbs without the battery installed. The XP4
long-range battery weighs 9lbs.
· Easy Charging
An auxiliary charging port near the bottom bracket provides riders
with the option to charge the eBike without removing the battery. The XP4 750
comes standard with a 2amp charger for 7-9 hour charging, but a 5amp Fast Charger can
be purchased separately, which can charge the long-range battery in as little
as 3.5 hours.
· Fully Redesigned Frame
The newly designed, more aesthetic XP4 frame is lightweight and
features sturdy 6000 series aluminum with mounting points for various accessory
combinations.
· Motor Controller
24amp internal controller is IP-X5 rated and potted for
weatherproofing and thermal management.
· Green Packaging
Packaging components are biodegradable and easily recyclable.

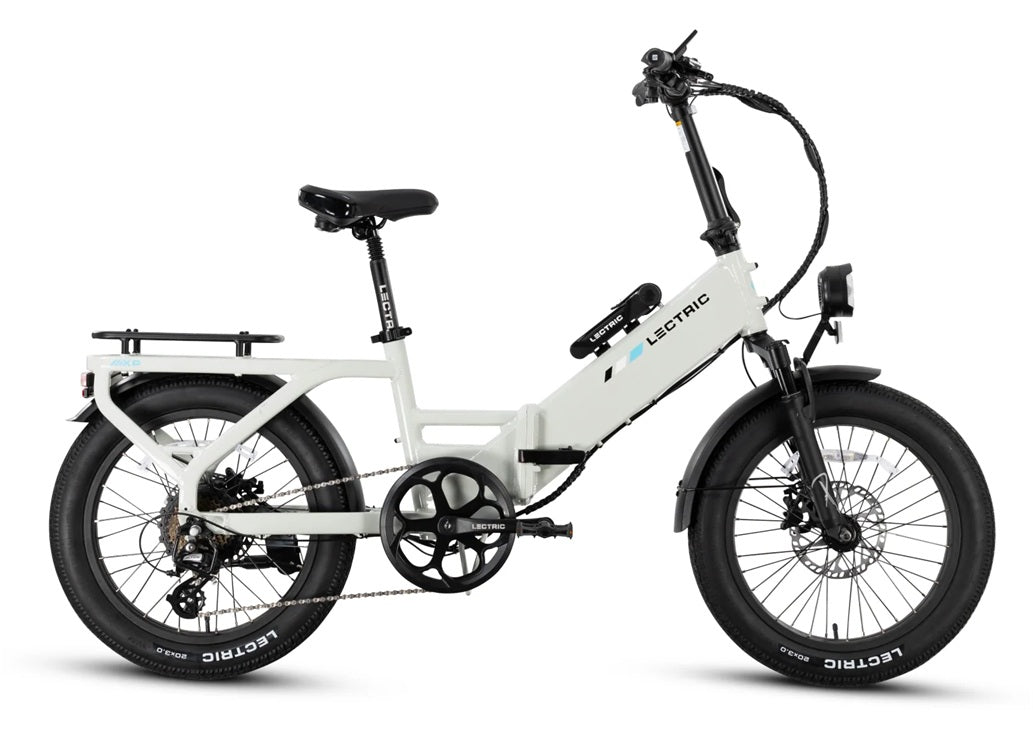

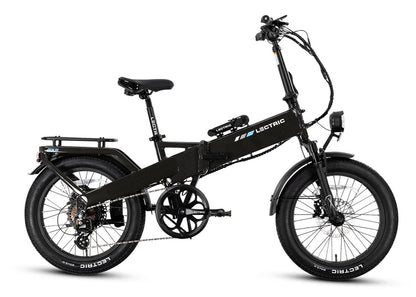

· Color
Stratus White, Tempest Gray, Pine Green, Rain Drop Blue
· Safety Tested
Our
ebikes are built with industry-leading safety certifications so you can have
peace of mind riding in almost any condition. A US-based bicycle testing lab
put the XP4 through the rigorous ISO 4210 standard testing process.
· UL Certified
We
ensure that the electrical and battery components are manufactured to the
industry standard. The Lectric XP4 is certified to UL 2849. Additionally, the
XP4's lithium-ion battery is certified to UL 2271.
