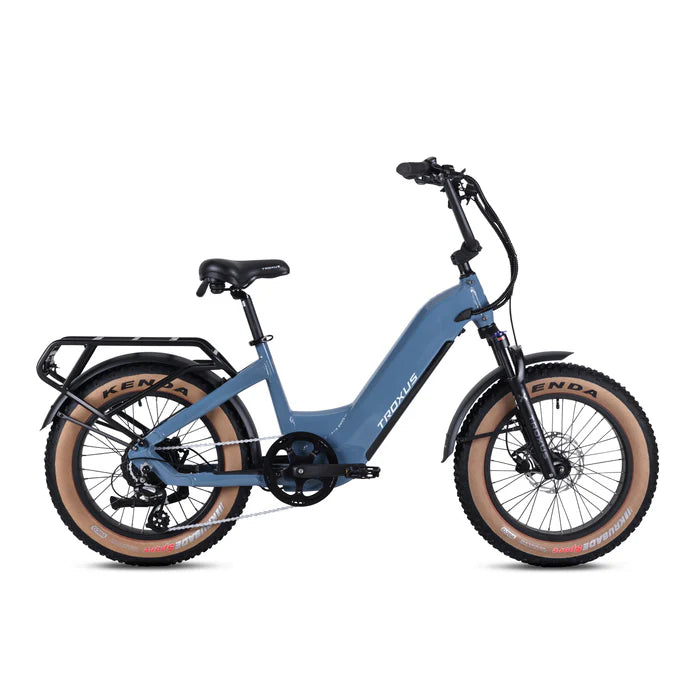

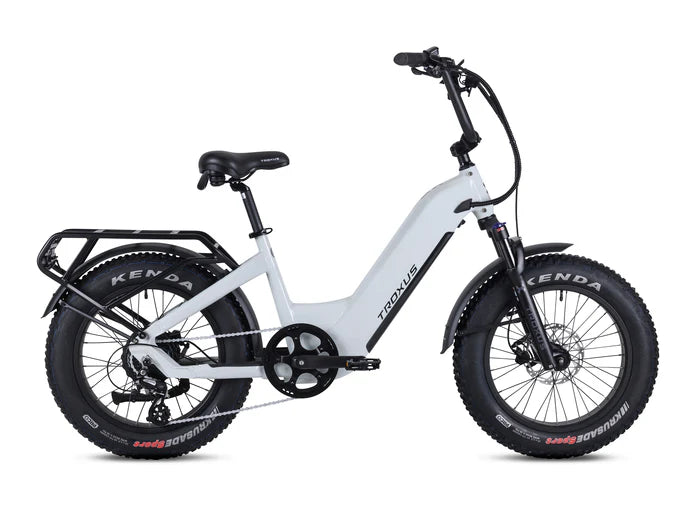

Lynx Plus 20" Fat Tire E-Bike

Lynx Plus 20" Fat Tire E-Bike

Arride Bikes

$1,999.00 USD
$2,399.00 USD $1,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

Note: An additional $150 fee will be added to cover professional assembly, setup, testing, and adjustment, ensuring your bike is ready for pickup and fully tuned for a smooth ride.

Compact Power Meets All-Terrain Adventure
The Lynx Plus Fat Tire Electric Bike is a versatile mini cargo e-bike built for both city streets and off-road escapes. Its nimble frame and 20" fat tires make it highly maneuverable in tight urban spaces, while still rugged enough to handle dirt paths and uneven terrain with ease. Outfitted with a semi-integrated, MIK-compatible rear rack, the Lynx Plus can haul up to 100 lbs of gear or even a passenger—perfect for daily errands, weekend adventures, or spontaneous detours.

View full details

Specifications

Motor

Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque

Battery

UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells

Display

Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging

Throttle

Thumb Throttle on Handlebar

Sensor

Switchable Torque And Cadence Sensor Modes

Pedal Assist

0~5 Level Pedal Assist

Charger

3A / 100-240V Input / 54.6V Output

Lights

Front Light, Rear Light w/ Turn & Hazard Signals

Controller

48Vx22A/12V

Frame

6061-T6 Aluminum Step-Thru Frame

Fork

Front Suspension Fork, 80mm Travel

Chain

KMC® 1/2"x3/32"

Crankset

Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm

Rear Derailleur

Shimano® RD-M310-L, Altus, 8-Speed

Cassette

Shimano® 8-Speed, 12-32T

Shifter

Shimano® 8-Speed

Bottom Bracket Set

Square Taper Sealed Bearings, Torque & Cadence Sensors Included

Tires

KENDA® 20"x4.0", w/ Anti-Puncture K-Shield

Front Hub

Alloy, 36H, 110mm, 3/8" Axle

Rear Hub

Bafang® 48V 750W/ 28 MPH. 86Nm

Rims

Alloy Double Wall, 20"x4.0" w/ Eyelets

Spokes

Stainless 13G. Front / 12G. Rear

Brakes

Tektro® Hydraulic, w/ Brake Sensors

Rotors

180mm / 160mm

Saddle

Troxus Comfort w/ Back Handle

Seat Post

Alloy, 30.9x400mm, Adjustable

Seat-Post Clamp

Alloy, 35mm w/ Quick Release

Stem

Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension

Handlebar

Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise

Grips

Ergonomic Comfort

Pedals

9/16″ Alloy Platform with Reflectors

Headset

Threadless, Locking Internal 1-1/8"

Max Speed

Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist

Range

Up To 90 Miles Per Charge

Weight Limit

Maximum Load: 400 lbs; Maximum Rear Rack Capacity: 100 lbs

Net Weight

77.2 lbs

Rack

Semi-Integrated Alloy Rear Model/ MIK-Compatible Rear Rack

Fenders

Alloy, 20"x4.0" w/ Alloy Hardware

Kickstand

Adjustable Side Kickstand

Packaged

Above All Accessories Are Included.
